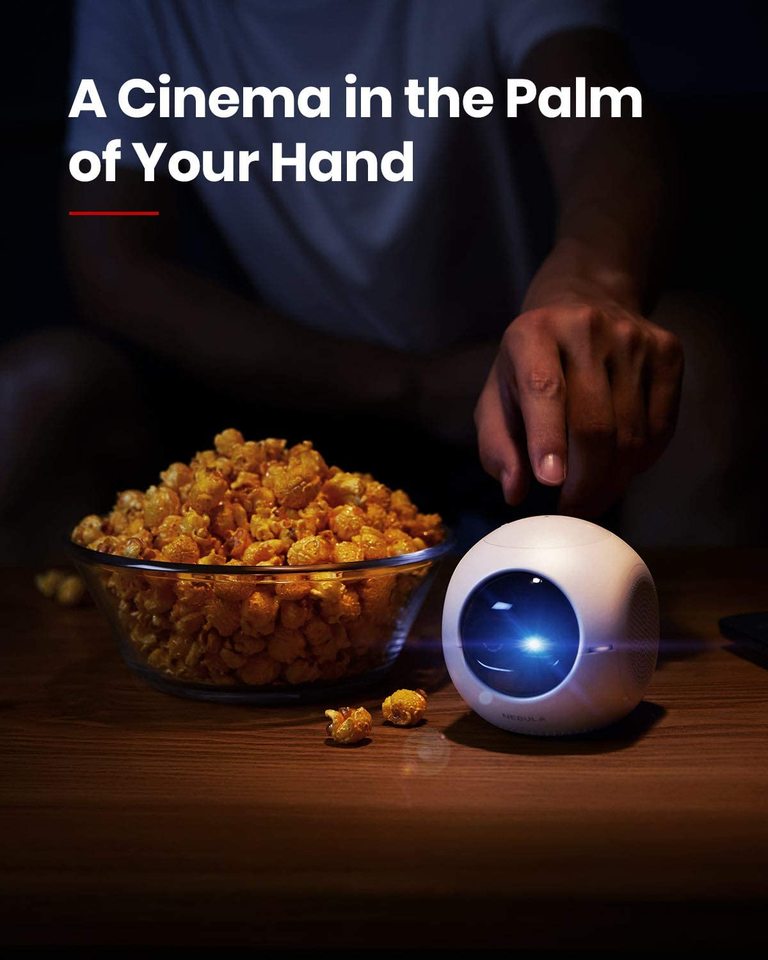

Supersize Your Entertainment

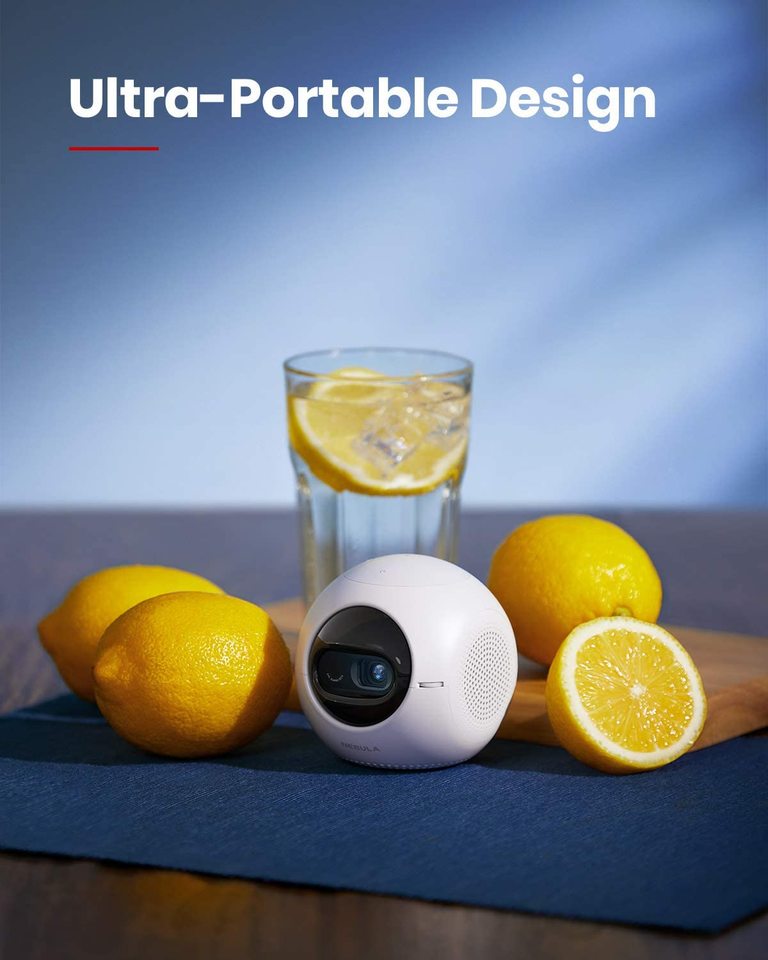

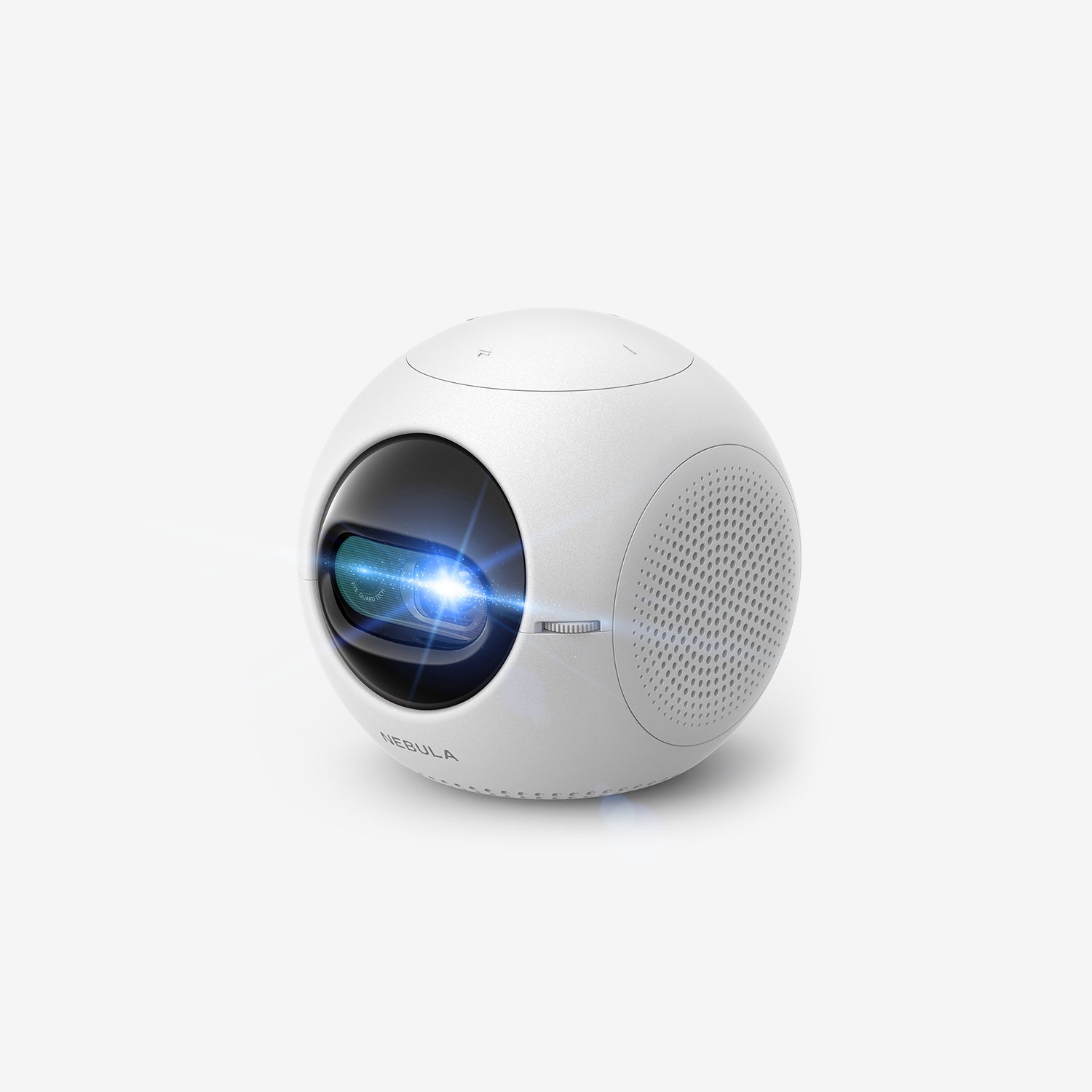

From a device the size of an apple, Astro has the power to project an image up to 100 inches big. Capture the spectacle of the movie theater, no matter where you are.

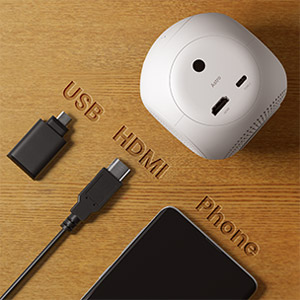

Multiple Connections
Expand Astro’s capabilities by connecting up your favorite HDMI, USB-C, and Bluetooth devices. You can even wirelessly mirror content from your phone via mirror cast and AirPlay.

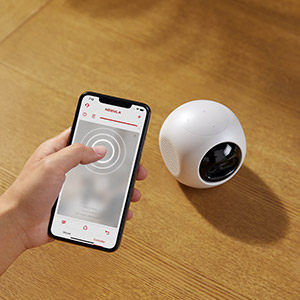

All From the App
Misplaced the remote? Don’t worry, as you can control Astro right from your phone via the Nebula Connect app. Play and pause movies, browse menus, and more with a simple swipe of your finger.
Entertain Them with Astro While You Take a Break
Binge-Watch Netflix While the Kids Sleep
Introduce the Little Ones to Your Childhood Favorites
Model Number: D2400
Color: White
NOTE:
*Copyrighted content from Hulu, Netflix, and similar services CAN NOT be mirrored or screencast. Download and use the apps directly through Capsule to view copyrighted content from these providers.
**Chromecast is not supported.
Size
Height: 91.2 mm / 3.6 in
Wide: 82 mm / 3.2 in
Length: 89.2 mm / 3.5 in
Weight: 369.96 g /13.05 oz
Display
Display Technology: 0.2 in DLP
Native Resolution: 854x480
Brightness: 100 ANSI lumens
Lamp Life: 30,000 hrs
Aspect Ratio: 16: 9

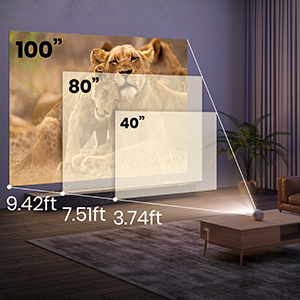

Throw Ratio: 100 in @2.87m; 80 in @2.29m; 60 in @1.72m; 40 in @1.14m
Offset: 100%
Focus Adjustment: Manual
Projection Mode: Front / Rear / Front Ceiling / Rear Ceiling
Keystone Correction: Auto (vertical ±40°)
Interface
HDMI: HDMI 1.4 up to 1080p input
USB-C: Charging & Data Storage / Connection via USB OTG
Control
Physical Buttons: Power / Volume / Mode Switch
IR Remote: D-pad Mode / Mouse Mode
BT Remote App: Android & iOS
Hardware
CPU: Quad Core A7 Smartphone Chipset
GPU: Adreno 304
RAM: 1GB DDR3
ROM: 8GB eMMC
Battery: 3250mAh / 3.63V
Speaker: 3W
Wi-Fi: 802.11a/b/g/n
Dual Frequency 2.4/5GHz
Bluetooth: BT4.2 Dual Mode/A2DP
Fan: <30 dB
Software

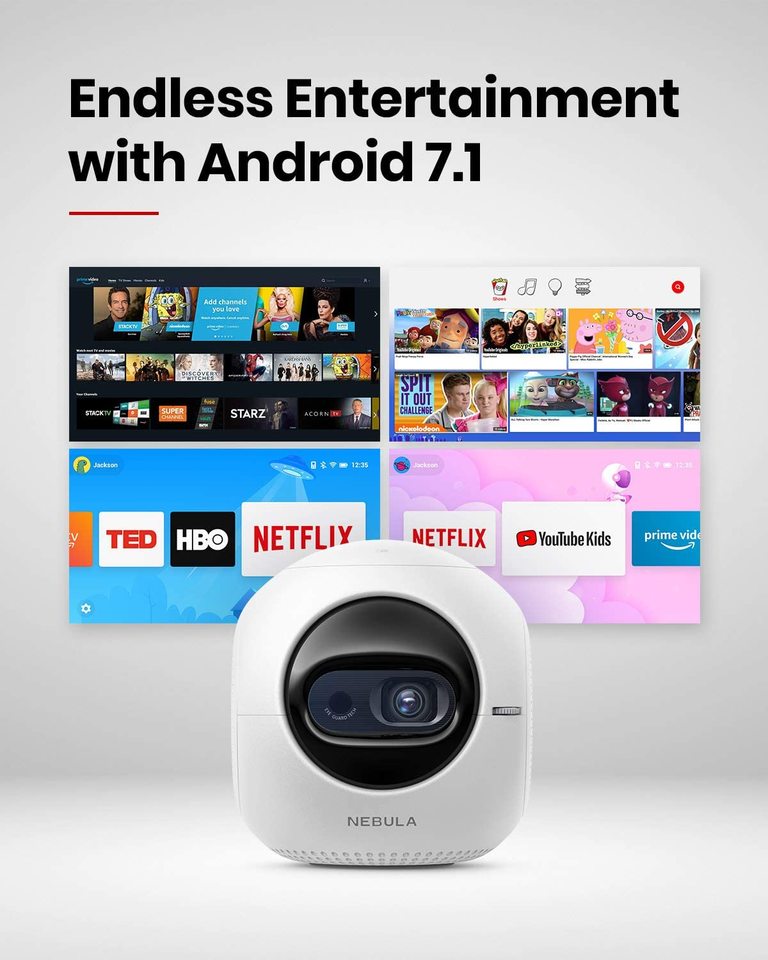

OS: Android 7.1
Working Modes: Projector Mode, Bluetooth Speaker Mode
OTA: Supported
App Store: Supported
Movie Playtime: 2.5 hrs in Battery Mode
Music Playtime: 14 hrs in Bluetooth Speaker Mode
Charging Time: 2 hrs with 5V2A (Supported Quick Charge 2.0, 9V/2A)
What's In The Box
Nebula Astro, adapter with USB-C to USB-A cable, manual, remote control, 12-month warranty, and our friendly customer service.
Notes: Brightness (light output) will vary depending on usage conditions. Light output is measured in accordance with ANSI IT7.228-1997. The nominal value represents the average value of mass production and is tested under ideal laboratory conditions.
Brightness diminishes due to increased usage time.
|
Astro |
Solar |
Solar Portable |
Apollo |
Mars II |
Price | $279.99 | $519.99 | $599.99 | $349.99 | $499.99 |
Projection Technology | DLP | DLP | DLP | DLP | DLP |
Brightness | 100 ANSI lumen | 400 ANSI lumen | 400 ANSI lumen | 200 ANSI lumen | 300 ANSI lumen |
Resolution | 854×480 (16:9) | 1920x1080 (16:9, FHD) | 1920x1080 (16:9, FHD) | 854×480 (16:9) | 1280×720 (16:9, HD) |
Projection Size | 40-100 in: 100 in @2.87m; 80 in @2.29m; 60 in @1.72m; 40 in @1.14m | 40-120 in: 120 in @3.18m; 100 in @2.65m; 80 in @2.13m; 60 in @1.59m; 40 in @1.05m | 40-120 in: 120 in @3.18m; 100 in @2.65m; 80 in @2.13m; 60 in @1.59m; 40 in @1.05m | 40-100 in: 100 in @2.87m; 80 in @2.29m; 60 in @1.72m; 40 in @1.14m | 30-150 in |
Operating System | Android 7.1, Download apps in Nebula Manager store | Android TV 9.0, Download 7000+apps in Google Play store | Android TV 9.0, Download 7000+apps in Google Play store | Android 7.1, Download apps in Nebula Manager store | Android 7.1, Download apps in Nebula Manager store |
Speaker | 3W | Dolby Digital Plus& 2x3W | Dolby Digital Plus& 2x3W | 6W | 2× 10W |
Video Playtime | Up to 2.5 hours | DC IN | Up to 3 hours in battery mode, up to 2 hours in standard mode | Up to 4 hours | Up to 4 hours |
Connectivity | HDMI, USB, Bluetooth, Wi-Fi, and Screen Mirroring | HDMI, USB, Bluetooth, Wi-Fi, and Chromecast | HDMI, USB, Bluetooth, Wi-Fi, and Chromecast | HDMI, USB, Bluetooth, Wi-Fi, and Screen Mirroring | HDMI, USB, Bluetooth, Wi-Fi, and Screen Mirroring |
Focus | Manual | Automatic | Automatic | Manual | Automatic (1 second) |
Keystone Correction | Auto Vertical | Auto Vertical+Manual Horizontal | Auto Vertical+Manual Horizontal | Auto Vertical+Manual Horizontal | Auto Vertical+Manual Horizontal |
Size | 3.5 x 3.5 x 3.6 in / 89 x 89 x 91 mm | 7.6 x 7.6 x 2.0 in / 192 x 192 x 50 mm | 7.6 x 7.6 x 2.2 in / 192 x 192 x 55 mm | 2.6 x 2.6 x 5.2 in / 65 x 65 x 131 mm | 7.0 x 4.8 x 5.2 in / 178 x 122 x 133 mm |
Weight | 0.9 lb | 2.2 lb | 2.9 lb | 1.3 lb | 3.9 lb |
