How do I use the keystone correction?

Go to Settings>Projector Settings>Keystone Correction to turn on auto keystone correction. To manually adjust, turn off Auto Keystone Correction.

How do I activate Capsule Max’s autofocus?

Slightly move the device or press and hold the “OK” button for 2 - 3 seconds to trigger the autofocus. To manually adjust, press the volume +/- buttons during autofocus.

How do I zoom in and out?

Unfortunately, Capsule Max does not have a zoom function.

Adjusting the Brightness

Go to Settings>Projector Settings>Image Mode>Standard Mode. Please note that Capsule Max automatically switches to a lower brightness mode when not charged.

How do I adjust the color display?

Go to Settings>Projector Settings>Color Temperature. You can choose between Normal, Cool, and Warm.

What is Capsule Max’s projection range?

The distance between Capsule Max and the projection surface is between a minimum of 23” (0.58m) and a maximum of 121 inches (3.08m) to display a projection image between 40 to 80 inches. For the best results, set the projection between 23” and 100” away.

How do I mirror my phone’s screen on Capsule Max?

iPhone users:1. Make sure your iPhone and Capsule Max are connected to the same WiFi network.2. Enable Screen Mirroring on your iOS device in the control center.3.Once Capsule Max shows up on your phone’s screen mirroring list, select Capsule Max to connect. Android users:a. Turn on Capsule Max and go to Settings>General>Screen Mirroring>Android.b. Enable Screen Mirroring on your phone via the pull-down menu, Settings, or WLAN Settings.c. Select "Nebula-xxxxxx" to connect. Please note that copyrighted content can not be mirrored or cast.

How do I play videos without WiFi?

- Download the videos onto a USB drive. Use the Google Play Store to download and install File Explorer onto Capsule II. -Install a media player app such as VLC or Kodi.- Plug the USB drive into Capsule II to play your media.

How do I pair the remote with Capsule Max?

There are two ways of pairing the remote with Capsule Max:- When prompted by the screen during setup, press the “OK” and “Volume-“ buttons at the same time. - Or go to Settings>Remotes & Accessories>Add Accessory to search and pair.

How do I switch to Bluetooth speaker mode?

Press the Bluetooth button or go to Settings>Projector Settings>Bluetooth Speaker Mode.



Mars 3 Now Available

Mars 3 Air

Capsule 3 (New)

0 / 0

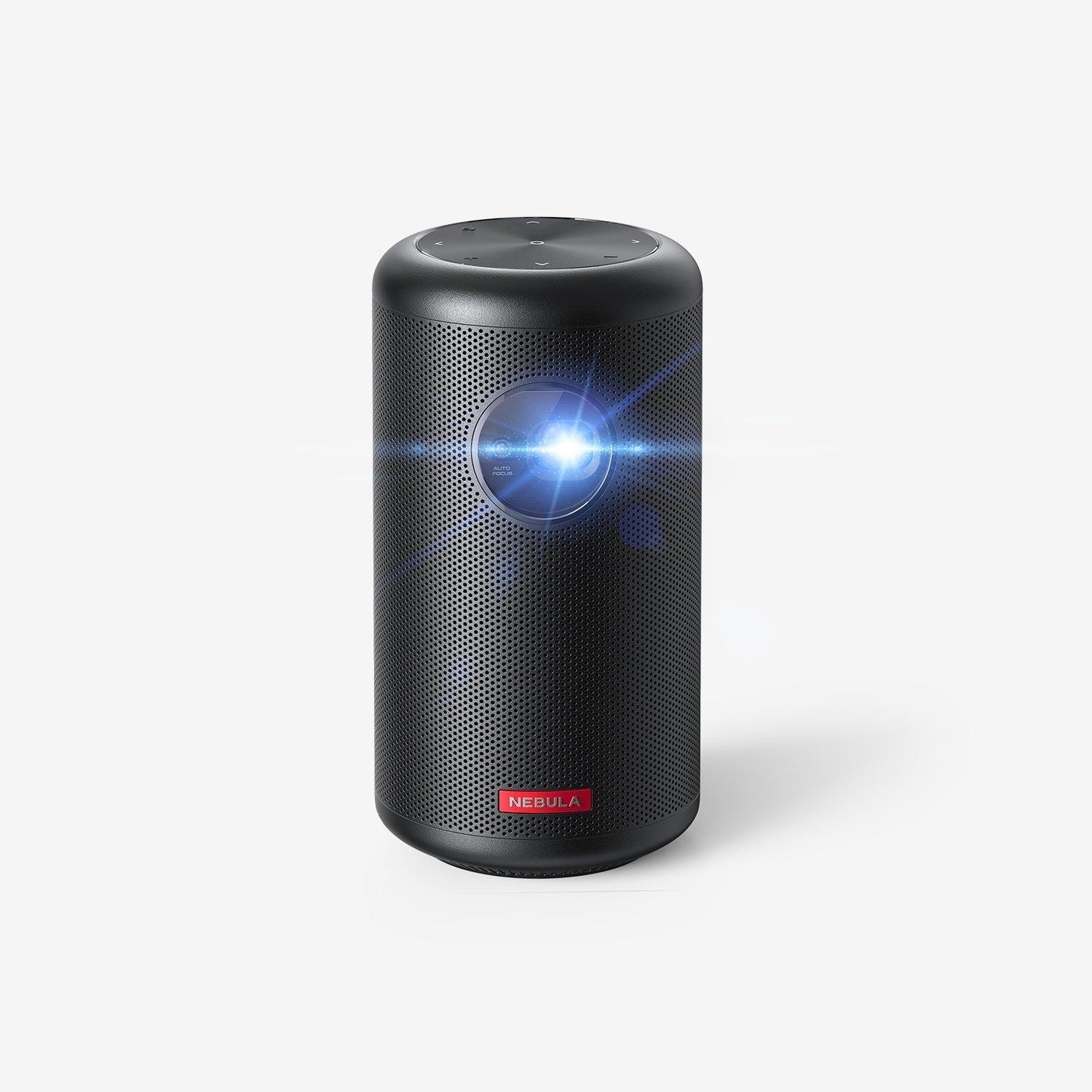

A Nebula Capsule Max portable projector sits in a white room projecting a blue light toward the camera.

0 / 0

A Nebula Capsule Max portable projector sits on top of a wooden table and projects a family running with their dog outside.

0 / 0

A hand puts a Capsule Max portable projector into a brown bag while a woman in a white shirt and blue jeans stands behind.

0 / 0

A couple sits on a couch with a Capsule Max portable projector next to them displaying hot-air balloons on their wall.

0 / 0

A group of friends drink wine on their rooftop at night while using a Capsule Max portable projector to watch a movie.

0 / 0

A Capsule Max portable projector sits on top of a stand and projects a family lying in the grass with their dog.

0 / 0

A Capsule Max portable projector displays Android 8.1 content onto a screen with the Android mascot peering nearby.

Capsule max (Refurbished)

HD Viewing: Cutting-edge DLP technology projects a vividly-detailed 720p, 200-ANSI-lumen image up to 100 inches big. Ideal for use in low-light environments.
Instant Clarity: Get an ultra-sharp, rectangular image from almost any angle with Capsule Max mini projector’s keystoning in and one second autofocus technology
Ideal in the Home: Stay entertained at home with this mini-projector’s 100-inch image. Watch movies, take online classes, or keep the kids entertained with hours of cartoons and educational videos. The possibilities are endless.
Smart OS: Download and stream YouTube, Netflix,and more from Nebula Manager Store. Use the Nebula Connect app on your phone to control Netflix on the mini-projector.
NOTE: Copyrighted content from Netflix, and similar services CAN NOT be mirrored or screencast. Download and use the apps directly through Capsule Max movie projector to view copyrighted content from these providers. Chromecast is not supported. For peak performance, please update to the latest firmware.

Model Number: D2423

$379.99

Lease to own—no credit required. Start your new lease now.

Join our Registry, and create your own wish list for gifts now!

Email me when available

Leave your email address and we will notify you when the product is back in stock.

Capsule max (Refurbished)



Your email address will be only used to notify you of stock information. We don't share your information with anybody else.

(Optional) Join our Nebula email list to get special offers and more.

HD Viewing: Cutting-edge DLP technology projects a vividly-detailed 720p, 200-ANSI-lumen image up to 100 inches big. Ideal for use in low-light environments.
Instant Clarity: Get an ultra-sharp, rectangular image from almost any angle with Capsule Max mini projector’s keystoning in and one second autofocus technology
Ideal in the Home: Stay entertained at home with this mini-projector’s 100-inch image. Watch movies, take online classes, or keep the kids entertained with hours of cartoons and educational videos. The possibilities are endless.
Smart OS: Download and stream YouTube, Netflix,and more from Nebula Manager Store. Use the Nebula Connect app on your phone to control Netflix on the mini-projector.
NOTE: Copyrighted content from Netflix, and similar services CAN NOT be mirrored or screencast. Download and use the apps directly through Capsule Max movie projector to view copyrighted content from these providers. Chromecast is not supported. For peak performance, please update to the latest firmware.

Model Number: D2423

Safe & Secure

Pay with Ease

Trusted Delivery

Capsule max (Refurbished)

A Brighter World

Marvel as your movies shine bright at night. See the colors of your favorite films, shows, and more in vibrant detail with the 200 ANSI lumen bulb.

Up to 100-Inch Picture

Take the magic of the cinema wherever you go. Enjoy the epic scale of your favorite blockbusters with a HD image up to 100 inches big.

Hear Every Moment

The built-in 8W speaker pumps out high-intensity audio all around your space for heightened cinematic immersion.

All From the App

Control Capsule Max right now from your phone with Nebula Connect. Download it now from Google Play or the App Store.

Universal Compatibility

Connect HDMI and USB devices to this mini-projector to project all your media on the big screen—you can even connect devices wirelessly using Airplay, Miracast, or Bluetooth.

Say Goodbye to Eye Strain

Capsule Max reduces the amount of direct light entering your eyes. So keep binge-watching your favorite shows without straining your eyes.

Product/Features

	Capsule Max	Capsule II	Capsule	Mars II Pro	Cosmos Max	Cosmos Laser 4K
Price	$469.99	$579.99	$299.99	$549.99	$1,699.99	$2,199.99
Projection Technology	DLP	DLP	DLP	DLP	DLP	DLP, Laser Light Engine
Brightness	200 ANSI Lumens	200 ANSI Lumens	100 ANSI Lumens	500 ANSI Lumens	1500 ANSI Lumens	1840 ANSI Lumens
Resolution	1280x720 (16:9, HD)	1280×720 (16:9, HD)	854×480 (16:9)	1280x720 (16:9, HD)	3840x2160 (16:9, UHD)	3840x2160 (16:9, UHD)
Projection Size	40-100 in: 100 in @2.87m; 80 in @2.29m; 60 in @1.72m; 40 in @1.14m	40-100 in: 100 in @2.87m; 80 in @2.29m; 60 in @1.72m; 40 in @1.14m	40-100 in: 100 in @2.87m; 80 in @2.29m; 60 in @1.72m; 40 in @1.14m	40-100 in: 100 in @2.65m; 80 in @2.13m; 60 in @1.59m; 40 in @1.05m	60-150 in: 150 in @3.98m; 120 in @3.18m; 100 in @2.65m; 80 in @2.13m; 60 in @1.59m	60-150 in: 150 in @13.85 ft; 120 in @11.09 ft; 100 in @9.22 ft; 80 in @7.38 ft; 60 in @5.54 ft
Operating System	Android 8.1, Download apps in Nebula Manager store	Android TV 9.0, Download 7000+apps in Google Play store	Android 7.1, Download apps in Nebula Manager store	Android 7.1, Download apps in Nebula Manager store	Android TV 9.0, Download 7000+apps in Google Play store	Android TV 10.0, Download 7000+apps in Google Play store
Speaker	1× 8W	1× 8W (270°)	1× 5W (360°)	2× 10W	Dolby Digital Plus& 4x10W	2x 10W and 2x 5W, Dolby Audio, AiFi technology
Video Playtime	Up to 4 hours in battery mode, up to 1.5 hours in standard mode	Up to 2.5 hours in battery mode, up to 2 hours in standard mode	Up to 4 hours in battery mode, up to 2.5 hours in standard mode	Up to 3 hours in battery mode, up to 1.5 hours in standard mode	DC IN	DC IN
Connectivity	HDMI, USB, Bluetooth, Wi-Fi, Screen Mirroring	HDMI, USB, Bluetooth, Wi-Fi, and Chromecast	HDMI, USB, Bluetooth, Wi-Fi, and Screen Mirroring	HDMI, USB, Bluetooth, Wi-Fi, and Screen Mirroring	HDMI, USB, Bluetooth, Wi-Fi, and Chromecast	HDMI, USB, Bluetooth, Wi-Fi, and Chromecast
Focus	Automatic	Automatic (1 second)	Manual	Automatic	Automatic	Seamless Autofocus
Keystone Correction	Auto Vertical+Manual Horizontal	Auto Vertical	Auto Vertical+Manual Horizontal	Auto Vertical+Manual Horizontal	Auto Vertical+Manual Horizontal	Gridless Auto Keystone Correction (Horizontal & Vertical)
Size	3.1 x 3.1 x 5.9 in / 80 x 80 x 150 mm	3.1 x 3.1 x 5.9 in / 80 x 80 x 150 mm	2.7 x 2.7 x 4.7 in / 68 x 68 x 120 mm	7.0 x 4.8 x 5.2 in / 178 x 122 x 133 mm	13.8 x 9.8 x 3.9 in / 350 x 250 x 100 mm	10.4 x 6.5 x 8.7 in / 263 x 165 x 220 mm
Weight	1.6 lb	1.6 lb	1.0 lb	3.9 lb	6.6 lb	10.7 lb

FAQ

Specs

Height

5.9 in

Diameter

3.14 in

Weight

26.0 oz

Keystone Correction

Auto (Vertical ±40°) and Manual (Horizontal ±40°)

Projection Mode

Front / Rear / Front Ceiling / Rear Ceiling

Focus Adjustment

1-second autofocus

Offset

100%

Throw Ratio

100 in @3.08 m; 80 in @2.46 m; 60 in @1.73 m; 40 in @1.15 m

Aspect Ratio

16: 9

Lamp Life

30, 000 hours

Brightness

200 ANSI lumens

Native Resolution

1280 x 720

Display Technology

0.3-in HD DLP

Video Decode

1080p@60fps

Charging Time

2.5 Hours with DC-in 15V/3A

Video Playtime

4 Hours of Local Video Playtime

App Store

Nebula Manager

OTA

Support

Working Modes

Projector Mode, Bluetooth Speaker Mode

OS

Android 8.1 with Nebula UI

Fan

<30dB

Bluetooth

BT4.2 Dual Mode/A2DP

Dual Frequency

2.4/5GHz

Wi-Fi

802.11b/g/n/ac

Speaker

Battery

9, 700mAh 3.7V

ROM

16GB eMMC

RAM

2GB DDR3

GPU

Adreno™ 506

CPU

Octa-Core A53 Chipset

Bluetooth Remote App

Nebula Connect for Android and iOS

IR Remote

Power / D-pad / Volume ± / Mouse Mode / Home / Back / Menu (Enable Focus)

Touch Buttons

D-pad / Volume ± / Back

Physical Buttons

Power / Mode Switch (Bluetooth Speaker Power)

USB Type-A

For USB Flash Drives

AUX

DC-in

15V/3A

HDMI

HDMI 1.4 up to 1080p input

UPC

848061060157

Documents & Drivers

Manual
Nebula_D2423_online_offline_INT_Manual
2019-08-26


